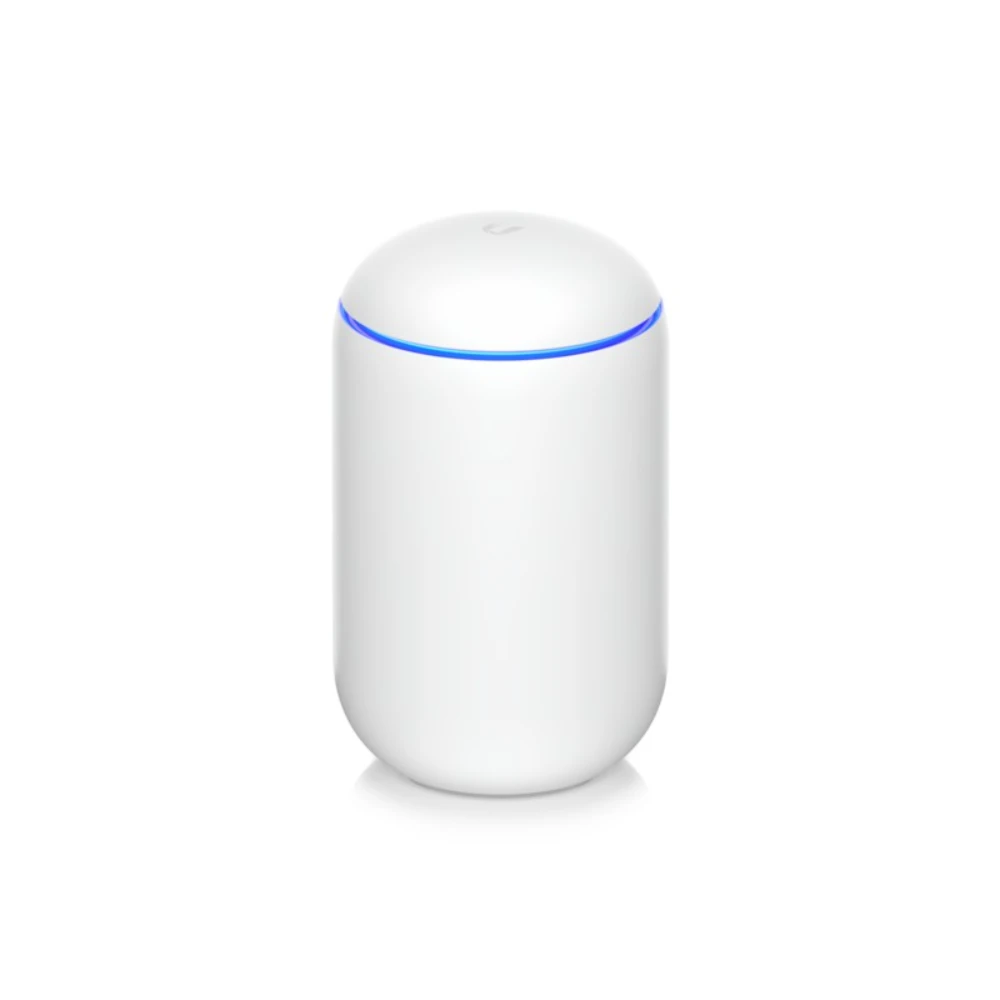

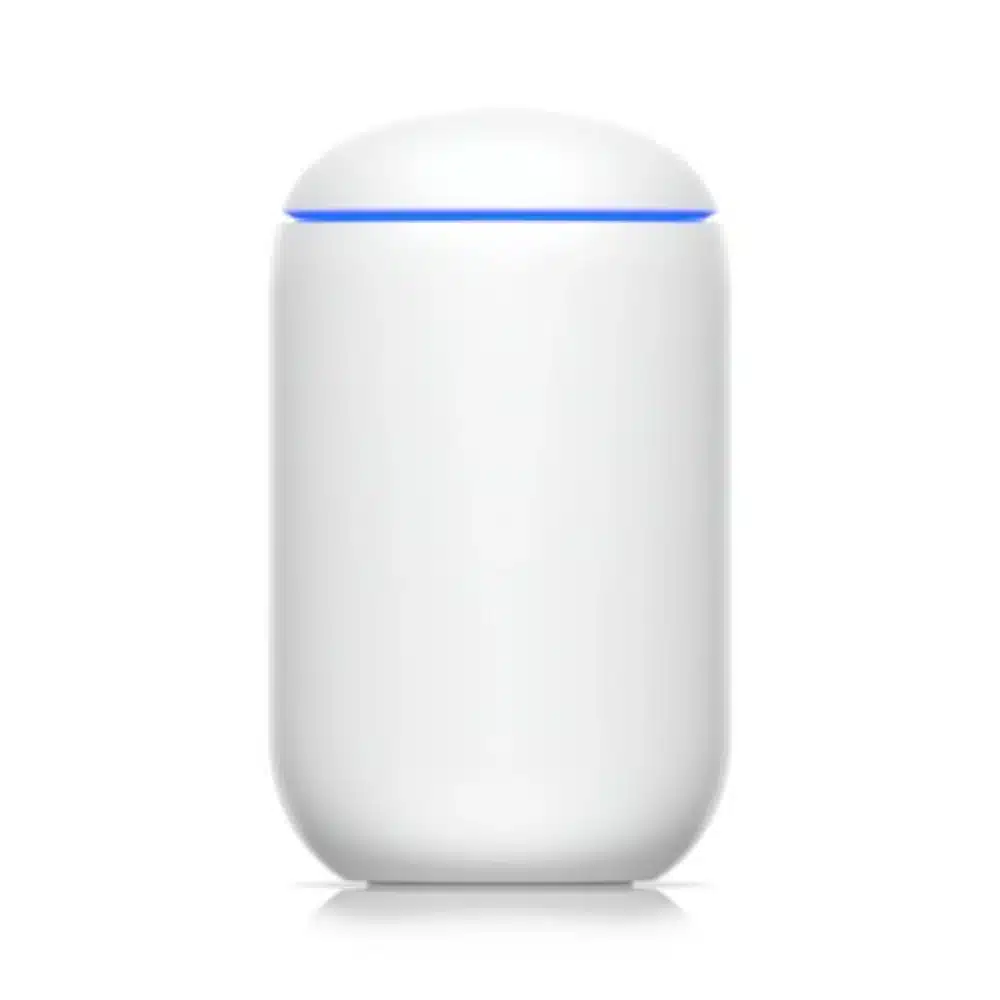

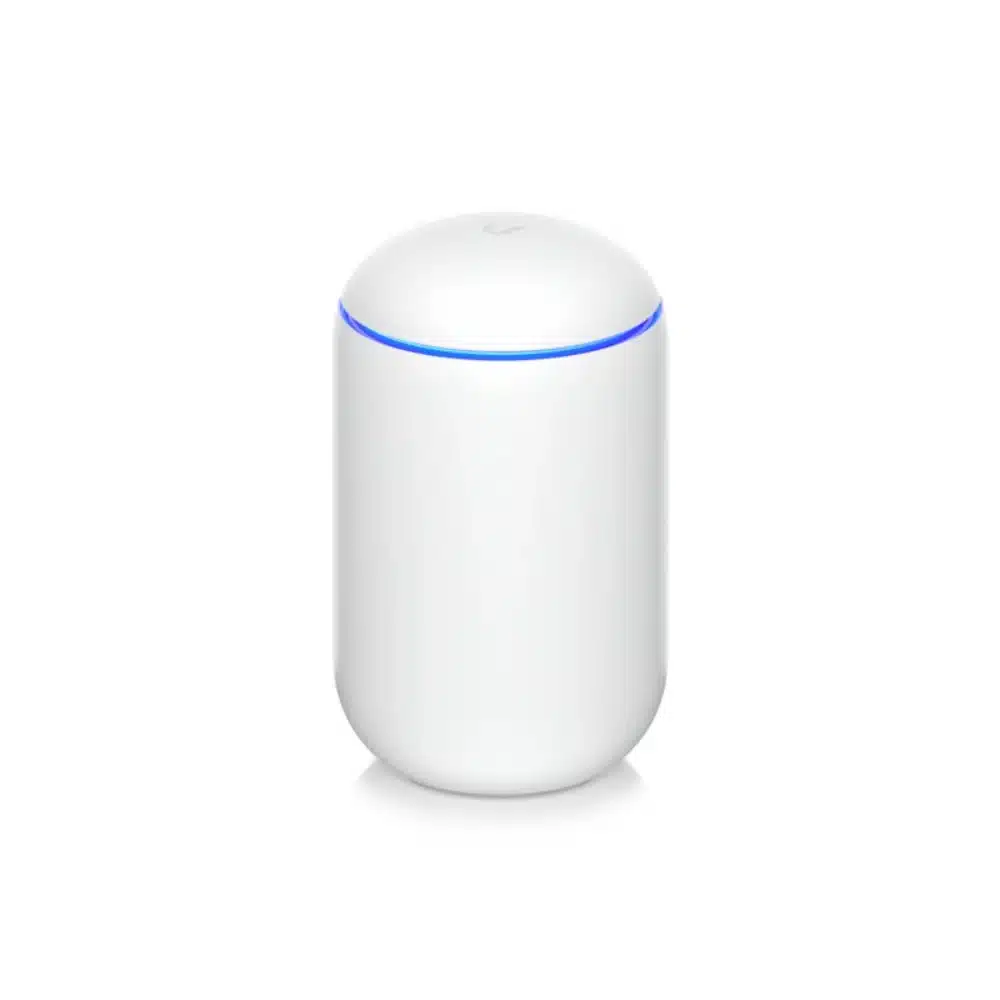

Ubiquiti UDM Description
Features:
- Dual-band Wave 2 access point (802.11ac, 4×4)
- Managed, 4-Port Gigabit switch
- Advanced security gateway with internet threat management and deep packet inspection
- Pre-installed UniFi Network application
- Powered by a fast, 1.7 GHz quad-core processor
- Allows you to easily scale your deployment by connecting additional UniFi devices
Specification
Mechanical | |
---|---|
Dimensions | Ø 110 x 184.2 mm (Ø 4.33 x 7.25″) |
Weight | 1.05 kg (2.32 lb) |

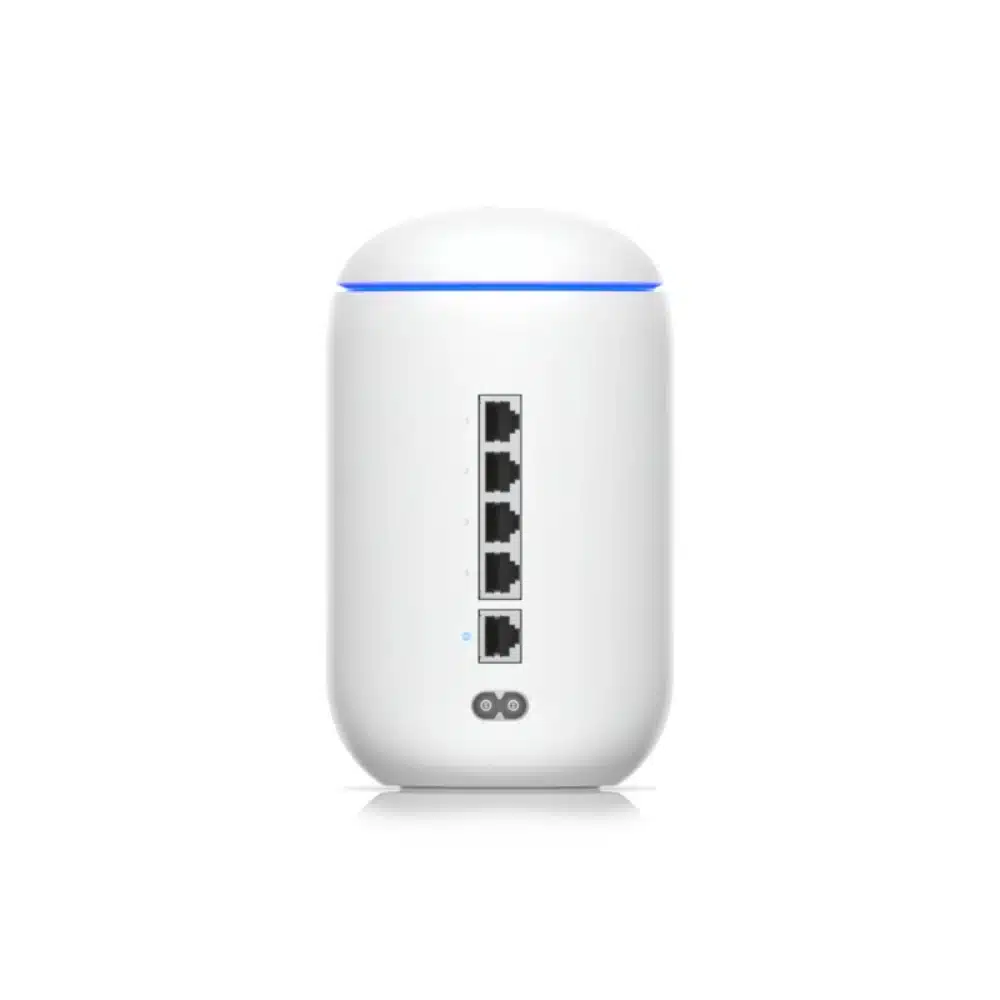

Networking Interfaces | (4) LAN 10/100/1000 RJ45 Ports (1) WAN 10/100/1000 RJ45 Port |
Buttons | Reset |
IDS/IPS Throughput | 850 Mbps |
Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
System Memory | 2 GB DDR RAM |
On-Board Flash Storage | 16 GB |
Maximum Power Consumption | 26W |
Supported Voltage Range | 100 – 240VAC |
Power Method | AC Power Cord |
Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC) |
Power Save | Supported |
Beamforming | Supported |
TX Power* 2.4 GHz 5 GHz |
23 dBm 26 dBm |
Antenna | (1) Dual-Band, Quad-Polarity Antenna |
Antenna Gain 2.4 GHz 5 GHz |
3 dBi 4.5 dBi |
Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
BSSID | Up to 8 per Radio |
Operating Temperature | -10 to 45° C (14 to 113° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
