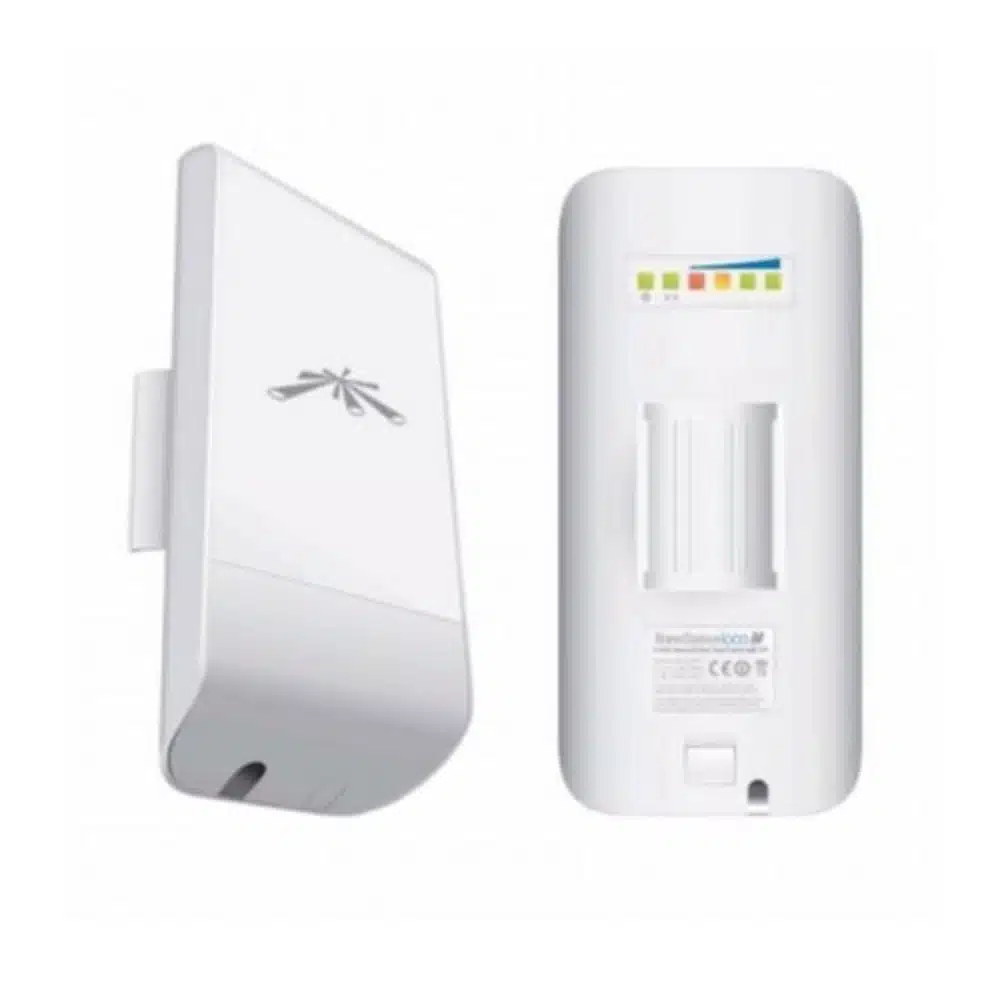

UBIQUITI NANOSTATION LOCO M2


Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Compare
Model No Loco M2
Frequency 2.4 GHz
Throughput 150 Mbps
Gain 8 dBi
Range 5 km
Operating Frequency (MHz) 2412 – 2462

Product Specification

Dimensions 161 x 31 x 80 mm (6.31 x 1.22 x 3.15?)
Weight 180 g (6.35 oz)
Power Supply (PoE) 24V, 0.5A 24V, 0.5A
Max. Power Consumption 5.5W 5.5W
Power Method Passive PoE (Pairs 4, 5 ; 7, 8 Return)
Operating Frequency 2412-2462 MHz
Gain 8 dBi
Networking Interface (1) 10/100 Ethernet Port
Processor Specs Atheros MIPS 24Kc, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
Frequency 2.4 GHz
Cross-pol Isolation 20 dB Minimum
Max. VSWR 1.4:1
Beamwidth 60° (H-pol) / 60° (V-pol) / 60° (Elevation)
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Shock & Vibration    ETSI300-019-1.4
SKU: LM-1833 Categories: ,
