UBIQUITI LBE-M5-23-EU




Model No LBE-M5-23
Frequency 5 GHz
Throughput 100+ Mbps
Gain 23dBi
Management Radio No
Wind Loading 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)

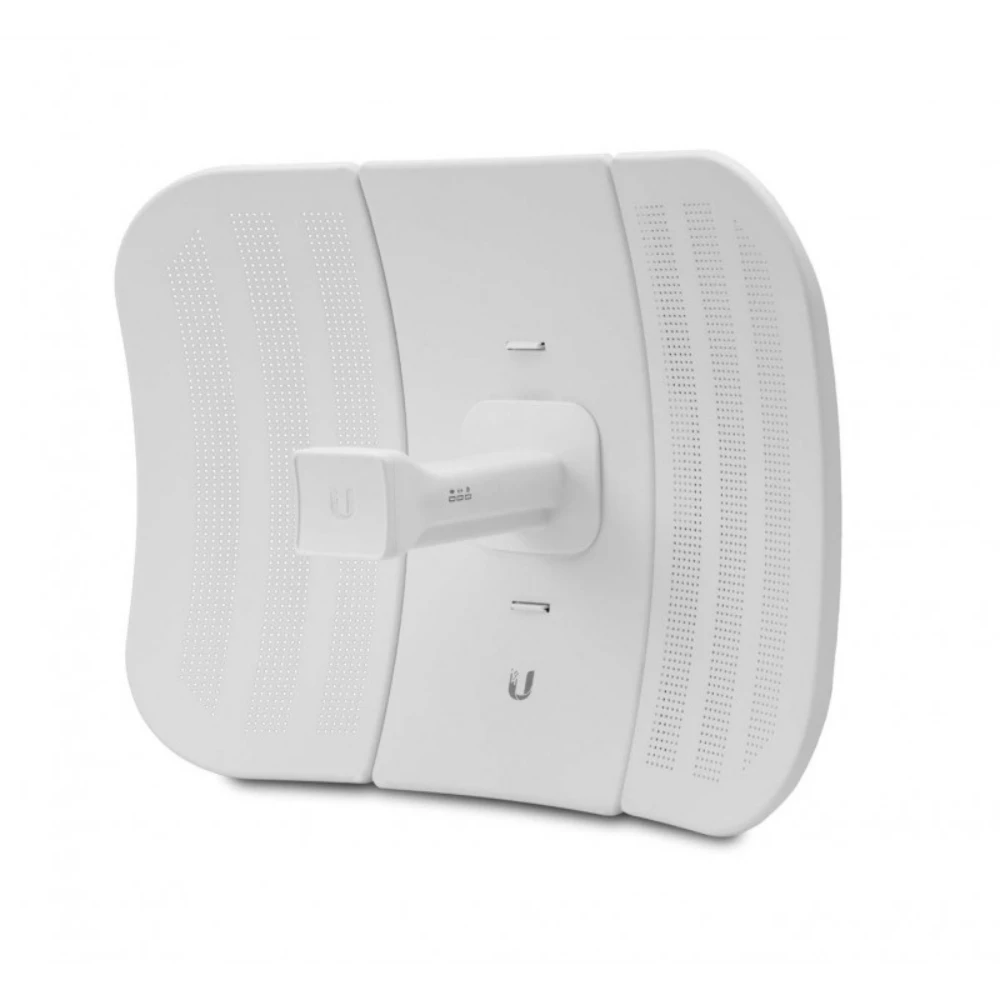

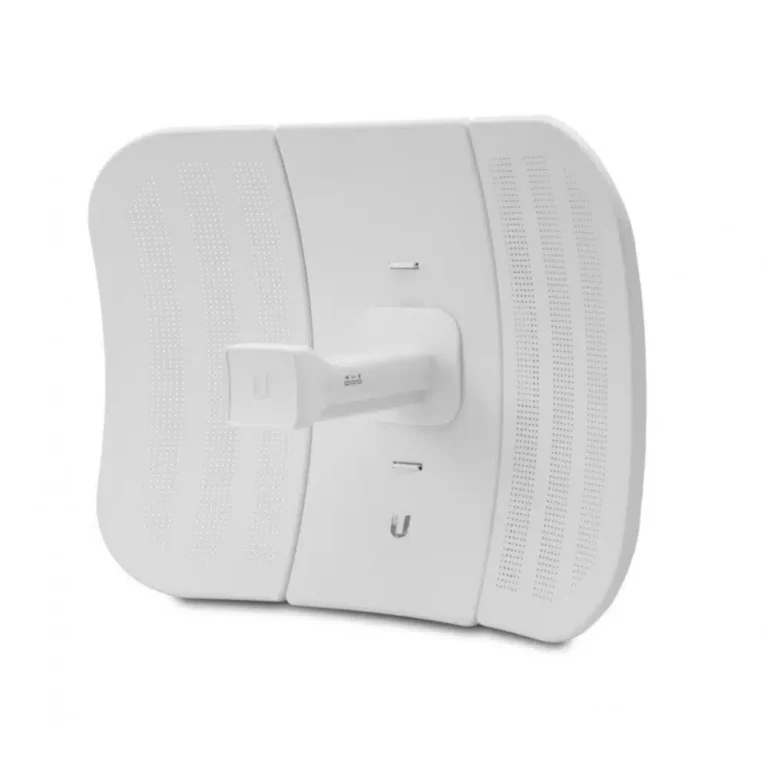

The Ubiquiti LiteBeam LBE-M5-23 is a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment). The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging.

The LiteBeam operates in the 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km. The LBE-M5-23 combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.

The InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and Ubiquiti’s revolutionary airMAX TDMA protocol enhances network performance and scalability. The LBE-M5-23 also features a unique ball joint mounting system that provides 3-axis adjustment flexibility for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.

Product Features:

  • High Performance, Long Range
  • 3-Axis Adjustment Flexibility
  • Quick Assembly and Installation
Categories: ,

Technical Specs:

Dimensions 362 x 267 x 184 mm
Weight 750 g
Wind Survivability 200km/h
Wind Loading 283 N @ 200 km/h
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit
Max. Power Consumption 4W
Power Supply 24V, 0.2A PoE Adapter
Power Method Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 70° C
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4
ETSI Specification EN 302 326 DN2
Processor Specs MIPS 74K
Memory 64 MB
Networking Interface (1) 10/100 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Operating Frequency 5150 – 5875 MHz
Output Power 25 dBm
Gain 23 dBi
Max. VSWR 1.5:1
