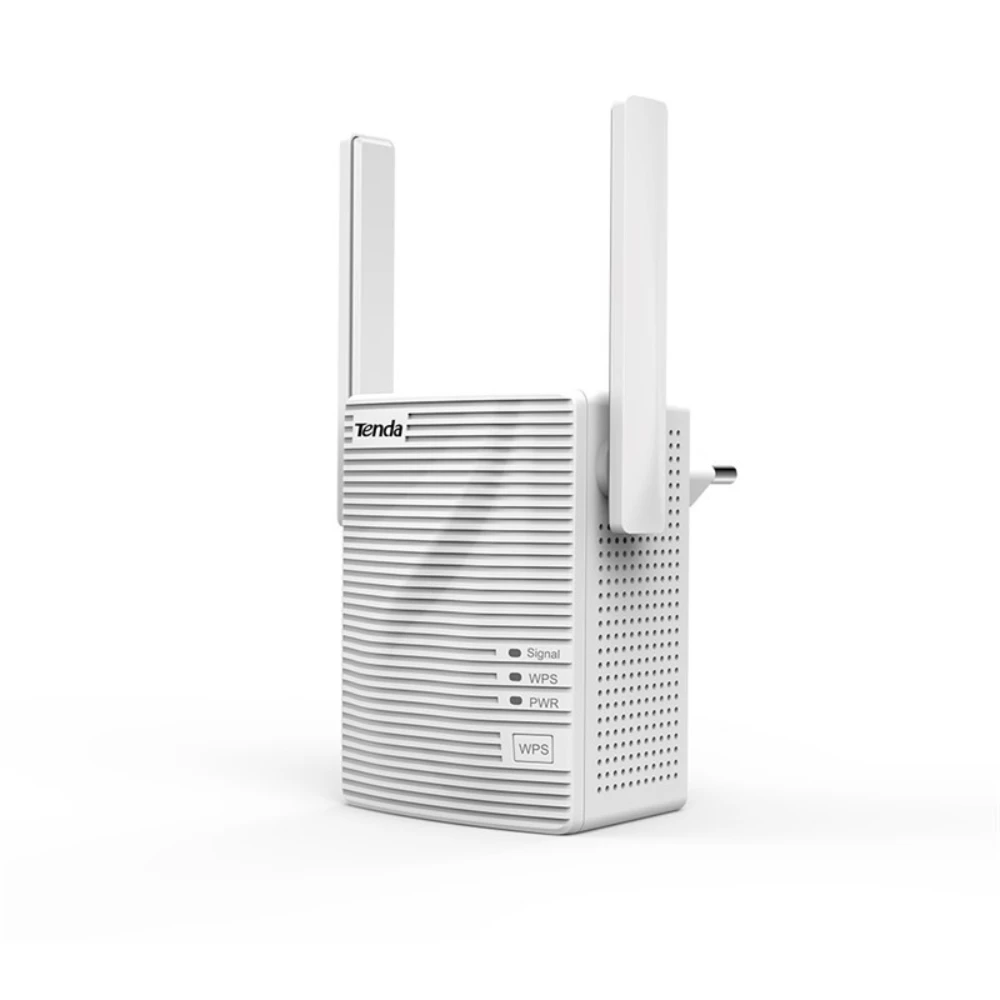

Tenda A301V2.0

A301 is an N300 Mini WiFi repeater dedicated to two-story houses, villas, and multi-room houses with an area of over 120 square meters. It offers up to 300 Mbps data rate on 11n band



A301    /    EXTENDER    /    300MBPS WIFI REPEATER
A301 is an N300 Mini WiFi repeater dedicated to two-story houses, villas, and multi-room houses with an area of over 120 square meters. It offers up to 300 Mbps data rate on the 11n band. With two external Omni-directional antennas, A301 can provide larger WiFi coverage, as well as an extremely fast data rate, satisfying applications such as the playback of 1080P HD videos, and massively multiplayer online games, and high-speed download. With the upgrade Setup Wizard, it only takes you three steps to configure your repeater, which is easy to use. A301 also works better with other brands’ WiFi routers available on the market. For whole-home WiFi coverage, A301 is your best choice.
Selling Points
A301 / N300 Mini WiFi Range Extender
Fast speed and wide coverage
A301 is designed for two-story houses, villas, as well as 120m or larger apartments.
With 2 external Omni-directional antennas, A301 offers a data rate of 300 Mbps, a wider
WiFi coverage, and faster transmission speed to ensure superior performance in
video playback, fast-speed download, and big online games.
Stylish design, smaller, fresher, and more elegant
The streamlined and dynamic line pattern design endows A301 with a stylish appearance.
Mini-size design makes A301 look compact and elegant.
Swift switchover between the Repeater
and AP modes
You can switch between Repeater mode and AP mode as needed.
Repeater mode: A301 can expand WiFi coverage by bridging the upstream router’s
WiFi signal, and allows wired devices to be connected to its LAN port to access the
internet; AP mode: connect an Ethernet cable with internet connectivity to the LAN
port of A301 to turn it into an AP.
Intuitive signal LED to indicate the optimal
repeater location
The Signal LED tells the best repeater location.
Blue: good signal strength
Red: poor signal strength
Off: no signal
Compatible with any WiFi router
A301 can work well with any WiFi router and WiFi DSL modem router available on the
market, outshining most the repeaters.


1 * 10/100M Ethernet Port (RJ45)
Reset, WPS
LED indicator
1 * Signal LED
1 * Power LED
Power Supply
5V 1A, built-in
Plug Type

Power Consumption

No-load: 1.6W, Full-load: 3.8W
IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n on 2.4 GHz
Data Rate
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 300 Mbps
Frequency Band
11n: 2.412-2.484 GHz
Transmit Power
< 20 dBm (EIRP)
2 * External 3dBi Omni-directional antenna (non-detachable)
11n: 20/40MHz by default
Operating Mode
Repeater Mode
AP Mode
Wireless security protocol
Encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP&AES
DHCP Server
System Tool
Firmware upgrade, Restore factory settings, Login password, and Reboot
80mm * 58mm * 48mm
Operating temperature:0ºC~40ºC
Storage temperature:-40ºC~70?
Operating humidity:(10 – 90)% RH, non-condensing
Storage temperature:5%~90%RH, non-condensing
