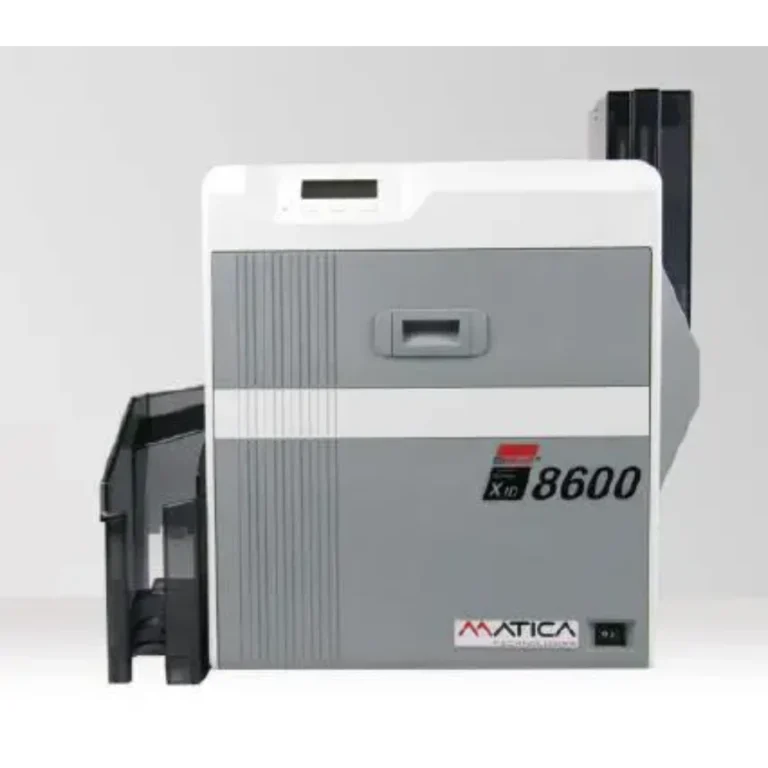

Matica EDIsecure XID8600 Dual-Sided Retransfer ID Card Printer

Key strengths

  • 600 x 600dpi dual-sided printing
  • 200 card input feeder / output hopper
  • Robust and durable print engine
  • Consistent print quality on multiple card surfaces/materials
  • High capacity consumables (1000 images)
  • Security printing including microtext and UV
  • Up to 125 cards per hour
  • USB and Ethernet


Matica EDIsecure XID8600 PVC Card Printer:

The Matica XID8600 is the high-end model of the proven 8000 series line of Matica’s XID retransfer printers. The XID 8600 features a ultra high resolution of 600dpi, perfect for the increased security printing demands in ID card applications, such as national ID programs and drivers license programs.

The standard model XID 8600 comes with a factory built-in flipper module for dual-sided printing, making it possible for extremely high resolution printing on both sides of the card.

On-demand modules are available for inline lamination on the front and/or backside of the card for additional security and extended surface protection against abrasion or other physical impacts.

Standard Features:
  • Dye-sublimation retransfer
  • Single- or double-sided over-the-edge retransfer printing
  • Prints up to 120 cards per hour (single-sided)
  • 600 dpi print resolution
  • 200 card input hopper capacity
  • 100 card output hopper capacity
  • Lifetime printhead warranty
Card Sizes Accepted CR80 – (CR80 is the size of a standard credit card)
Card Thickness Accepted 10-40 mil – hopper adjustment required
Printer Color Capability Color & monochrome printing
Print Resolution DPI 600 DPI
Printer Includes USB cable
Power cable
Microsoft Windows drivers
User manual
Empty ribbon cartridge – ribbon not included
Empty retransfer film cartridge – film not included
Input Hopper Capacity 200
Interface USB & Ethernet
OS Compatibility Microsoft® Windows® 2000, XP, Vista (32- & 64-bit), Windows 7 (32- & 64-bit)
Printer Options Encoding –

  • Magnetic stripe – ISO 7811 or JIS2
  • Contact/contactless chip encoding – MIFARE, DESFire, HID iClass, Legic, etc.

ILM-LS Lamination Module
Extended warranties through ID Wholesaler

Output Hopper Capacity 100
Printing Speeds (sec/card) 30 seconds (full-color (YMCK) single-sided card)
Printing Capability Single-sided & dual-sided printing
Warranty 3 years on printer (all parts & labor) and lifetime printhead coverage (with the use of EDIsecure materials)
Weight & Dimensions 30.6 lbs (21.9 kg), 13.5” x 14.7” x 12.6” (342.9mm x 373.4mm x 320.1mm)
