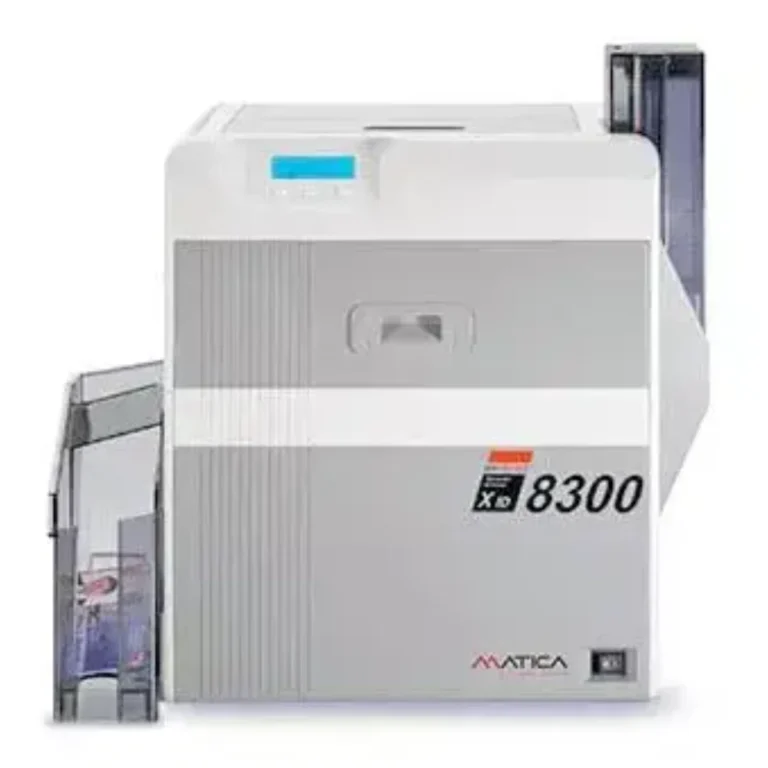

Matica EDIsecure XID 8300 Retransfer ID Card Printer

Key strengths

  • 300 x 300dpi printing
  • Robust and durable print engine
  • Consistent print quality on multiple card surfaces/materials
  • High capacity consumables (1000 images)
  • Up to 120 cards per hour
  • Scalable design and compact footprint
  • USB and Ethernet


Matica EDIsecure XID 8300 Retransfer ID Card Printer Specs:

Matica’s XID8300 is a versatile, durable and reliable printer with an established and renowned print engine. Its retransfer printing technology offers consistent, crystal clear printing right over the edge of the card. This indirect printing method also enables the XID8300 to print on variable surfaces found on contactless/contact chip cards and on multiple materials including PC (polycarbonate), PET and ABS cards, in addition to PVC.

Matica’s XID8300 is available as a single or dual-sided printer with a bend remedy option to ensure card flatness. Its durability backed with a 3 year warranty and its high capacity ribbons (1000 images) mean it is well suited to mid to high volume card issuance applications, including access control cards or student ID cards.

Product Features

  • Easy-to-use interface
    The EDIsecure XID 8300 ID card printer offers several features that offer maximum flexibility in a professional environment, and innovative benefits of ease of use. The user-friendly front-loading systems, with replaceable cartridges, makes changing supplies fast and easy. The built-in operating panel with LCD display makes the printer easy to setup and operate, providing low ribbon warnings, cleaning notifications, automatic ribbon detection and other functions.
  • High quality, over-the-edge printing
    Reverse-transfer printing provides superior print quality over direct-to-card printing, producing rich, vivid images that extend to the edge of your cards. Plus, the printhead is never in contact with the card with reverse transfer printing, which minimizes the risk of printhead damage and downtime.
  • Reliable and secure design
    Designed with a compact size, the XID 8300 retransfer printer delivers a great combination of reliability, performance, and affordability for printing durable and secure cards. Diverse security features such as an electronic security lock, Kensington Lock, dye-sublimation UV ink ribbon for invisible security printing, IPSEC for encrypted data transfer through networks, and Security Erase of black data on used supplies help to secure the environment and cards from counterfeiting and to avoid the misuse of personal information.
  • Optional dual-sided printing
    If your ID card program requires printing on both sides of the card, a flipper module can be factory installed, making the EDIsecure XID 8300 duplex capable.
  • Optional encoding
    The XID 8300 printer is capable of handling several encoding options such as smart card encoding, contact or contactless chip encoding (Mifare, DESFire, HID iClass, and more), and a variety of chip encoder plug-ins for advanced CEF.
  • Optional lamination
    For added security and card durability, field-installable lamination units can be added in minutes.


Technical specifications


Dye sublimation



Up to 120 cph (Single-sided)


Magnetic stripe
ISO 7811 HiCo/LoCo
(factory fit only)

Smart card / contactless
Contact PC/SC, EMV compliant.
Smart contact: ISO 7816-2, Contactless: ISO14443A, B, ISO15693, MIFARE®, DESFire®, HID iClass®



Format and materials

Card thickness
0.25 mm – 1.02 mm
(10 mil – 40 mil)
(hopper adjustment required)

Input stacker
200 cards (0.76mm)

Output stacker
100 cards (0.76mm)


USB 2.0


Printer dimensions (L x W x H)
343 x 322 x 360 mm
(13.5″ x 12.6″ x 14.1″)

13.9 kg
(30.6 lbs)
(excluding optional built-in items)
