Dahua PFM920I-6UN-C UTP CAT6 Cable

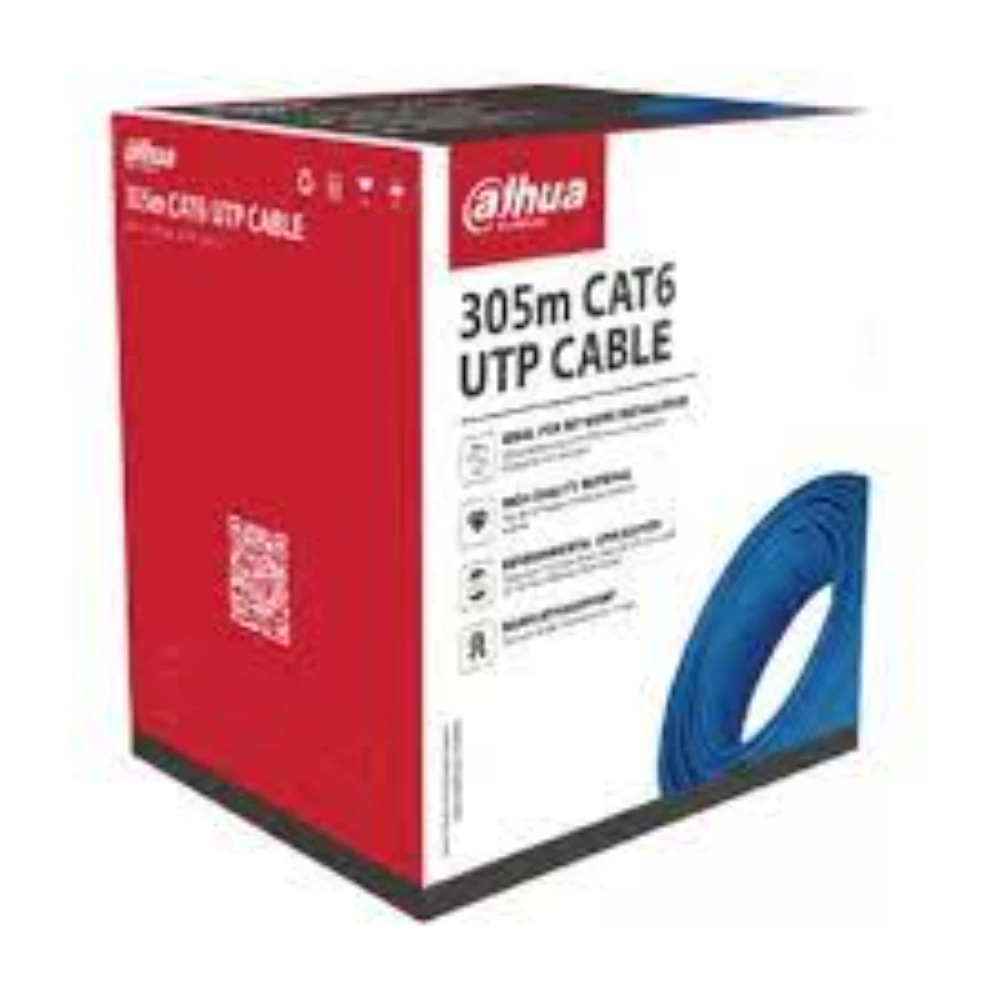

DahuaPFM920I-6UN-C CAT6 UTP Network Cable has a 305-meter length with unshielded twisted pair cable shielding. Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature. You Can Find The Best Quality Cat-6 Network Cable At The Best Price In ATC Gloabl.
Feature:
- 305 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
- High-purity oxygen-free copper conductor
- Customized PVC outer sheath; CE CPR Eca flame retardant class certified
- Characteristic Impedance: 100 ± 15Ω
- Near End Cross Talk: ≥39.30 dB/100 m@250 MHz
- Max. Attenuation: 34.8 dB/100 m@250 MHz
- Return Loss: ≥17.3 dB/100 m@250 MHz
Specification
| Cable | |
| Type | Cat6 |
| Conductor Material | Oxygen free copper (99.97% purity) |
| Electrical Characteristics(20℃) | Max. DC Resistance of a Single Conductor: 8.7 Ω/100 m<br> Min. Insulation Resistance: 5000MΩ·km<br> Max. DC Resistance Unbalance: 2% (pair intra), 4% (pairs inter)<br> Dielectric Strength: No breakdown with 1KV DC for 1 min |
| Length | 305 m |
| Others | Low Temperature Bending Test: No cracking after the test<br> Heat Shock Test: No cracking after the test<br> Operation Temperature: –20°C to +60°C (–4°F to 140°F)<br> Installation Temperature: 0°C to +50°C (32°F to 122°F)<br> Storage Temperature and Humidity: –10°C to +40°C (14°F to 104°F), <60% (RH) |
| Conductor | Diameter: 0.53mm ± 0.01 mm |
| Insulation | Material: HDPE<br> Min. Average Thickness: 0.21 mm<br> Diameter: 0.95 mm ± 0.1 mm<br> Color (4 Pairs): Blue, white/blue; orange, white/orange; green, <br>white/green; brown, white/brown<br> |
| Sheath | Material: PVC<br> Min. Average Thickness: 0.5 mm<br> Diameter:, 6.0 mm ± 0.3 mm<br> Color: White |
| General | |
| Dimensions | inner Carton Dimensions: 416.0 mm × 412.0 mm × 220.0 mm (16.38″ × 16.22″ × 8.66″) (L × W × H) |
| Weight | Net Weight; ≥10.5 kg (23.15 lb)<br> Gross Weight: ≥11.5 kg (25.35 lb) |
