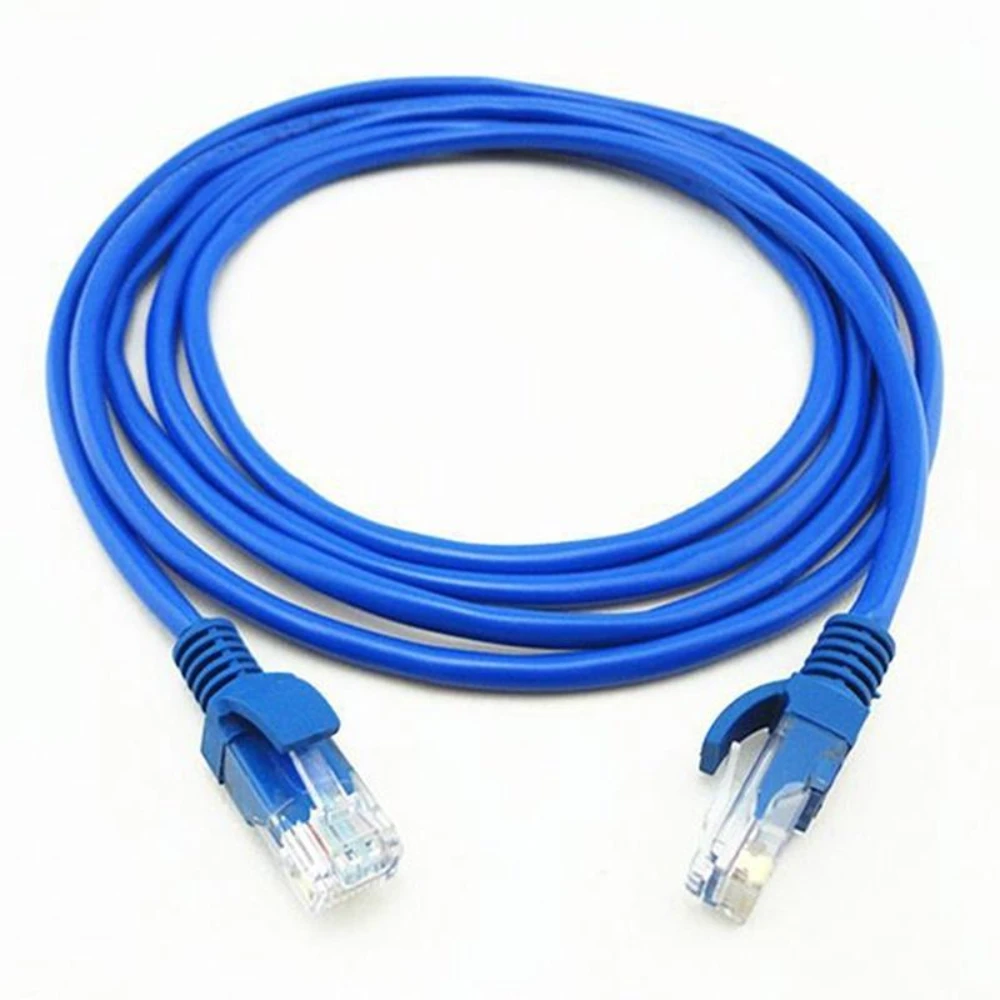

CAT6 Network Cable


“? Full diameter 305 m CAT6 network cable
? Core diameter: 0.53mm
? Excellent transmission performance using solid copper
? Quality verified by Fluke test
? Guaranteed long PoE transmission distance
? Great PVC flame resistance.”

 17,500

HIKVISION DS-1LN6-UE-W DESCRIPTION

 CAT6 Network Cables

? Full diameter 305 m CAT6 network cable
? Core diameter: 0.53mm
? Excellent transmission performance using solid copper
? Quality verified by Fluke test
? Guaranteed long PoE transmission distance
? Great PVC flame resistance.

Specification

General

? Core Color:                   1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown
? Packing:                         Wooden Tray & Carton
? Carton Dimension:        Per request
? Packing Length:            305±1.5m
? Rip-Cord:                       Yes
? Drain Wire:                     No
? Sheath Physical Properties:                   Before Aging Tensile Strength (Mpa) ?13.5 Elongation(%) ?150 Aging Period (?×hrs) 100?×24h×10d After Aging Tensile Strength(Mpa) ?12.5 Elongation(%) ?125 Cold bend(-20±2?×4h) 8×Cable O.D.?No visible cracks
? Electrical Characteristics (20?):                   1.0-250.0MHz Impedance ((?) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ?45 DC Resistance (?/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0

Conductor

? Material:                         SOLID-Bare Copper Content 99.95%
? Nom.O.D.(Mm):              0.530±0.005

Insulation
? Material:                         HDPE
? Diameter:                        0.95±0.05mm

Sheath

? Thickness:                      0.55±0.05 mm
? External O.D.:                 5.8±0.4mm
? Surface:                          Clean,Frap,Satiation
? Material:                         PVC(complies RoHS), CM
? Color:                             White RAL9003

Surface Printing

? Letter Height:              3.0±0.3mm
? Color:                           Black
? Print Error & Space:    ?±0.5%?1m”

SKU: ABC175 Categories: ,
