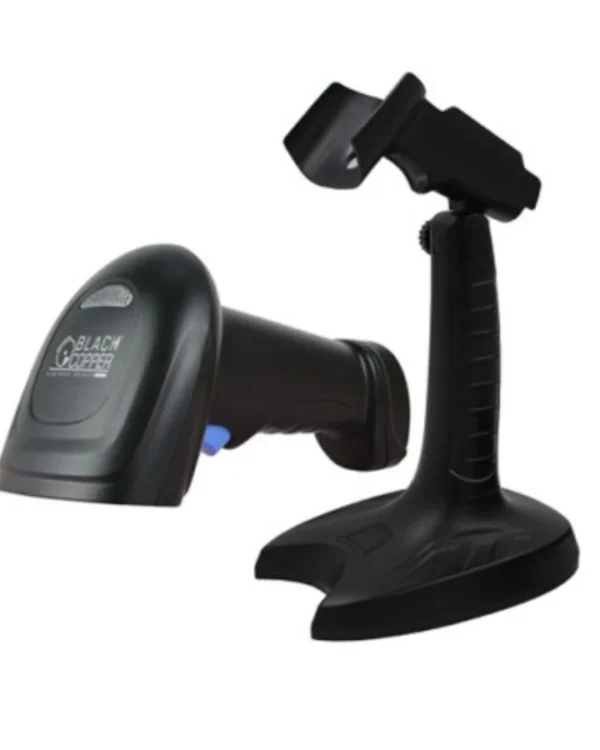

Black Copper BC-8805 Scanner


  • Scan speed: 78 scans per second
  • Light source: 650 nm visible laser diode
  • Rate of wrong code: 1/5,000,000
  • Laser class: Match with the national grade 1 laser security standards
  • Material: ABS+PC+ silica gel
  • Language: multilateral language

 4,500  5,000

Black Copper Barcode Scanner BC-8805 enhanced model which has the capability to Scan Speed: 78 scans per second Interface Type: USB Optical Resolution: 0.10mm (4mil) PCS0.9 Model 8805 Scan Element Type: Laser color: Black.





SKU: BC8805 Categories: ,

Specifications:

Technical Item Parameter
Light source 650 nm visible laser diode
Rate of wrong code 1/5,000,000
Laser class Match with the national grade 1 laser security standards
Decode capability UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN,code 39,Codabar,Interleaved 2 of 5,Industrial 2 of 5,Matrix 2 of 5,Code 128,Code 93,Code 11,MSI/PIESSEY,UK/PLESSEY, UCC/EAN128,China Postal Code
Interface IBM PS/2 keyboard,IBM PC/XT/AT,RS-232C;standard 2.0USB
Reading mode Button trigger; automatic scanning; automatically scintigraphy
Transmit speed RS232baudrate: 2400-38400
Mini. Bar Width 0.1mm(4mils)
Width of field 60mm at 30mm (at concrete);98mm at 100mm (at concrete)
Depth 2—9cm(0.1mm width of bar);3—40cm(0.3mm width of bar)
Scan speed 78 scans per second
Depth of field 10-600mm,  obliquity 60º elevation 45º
Operating temperature -20ºCto 50ºC
Storage temperature -20 degree to 60 degree
Operating humidity 0?95%
Storage humidity 5%?95%
Input voltage DC 5V±5%
Operating current 100ma(working);60ma(standby);150ma(peak)
Standby current ­20mA
Shock Designed to withstand 1.5m drops
Disturbance of electromagnetism Match with the en8001,par1 specifications
Dustproof and waterproof Match with the iec529,ip42 specifications
Dimension 19cm(L) x 6.5cm(W) x 5.8cm(H)
Material ABS+PC+ silica gel
Language Support multilateral language
