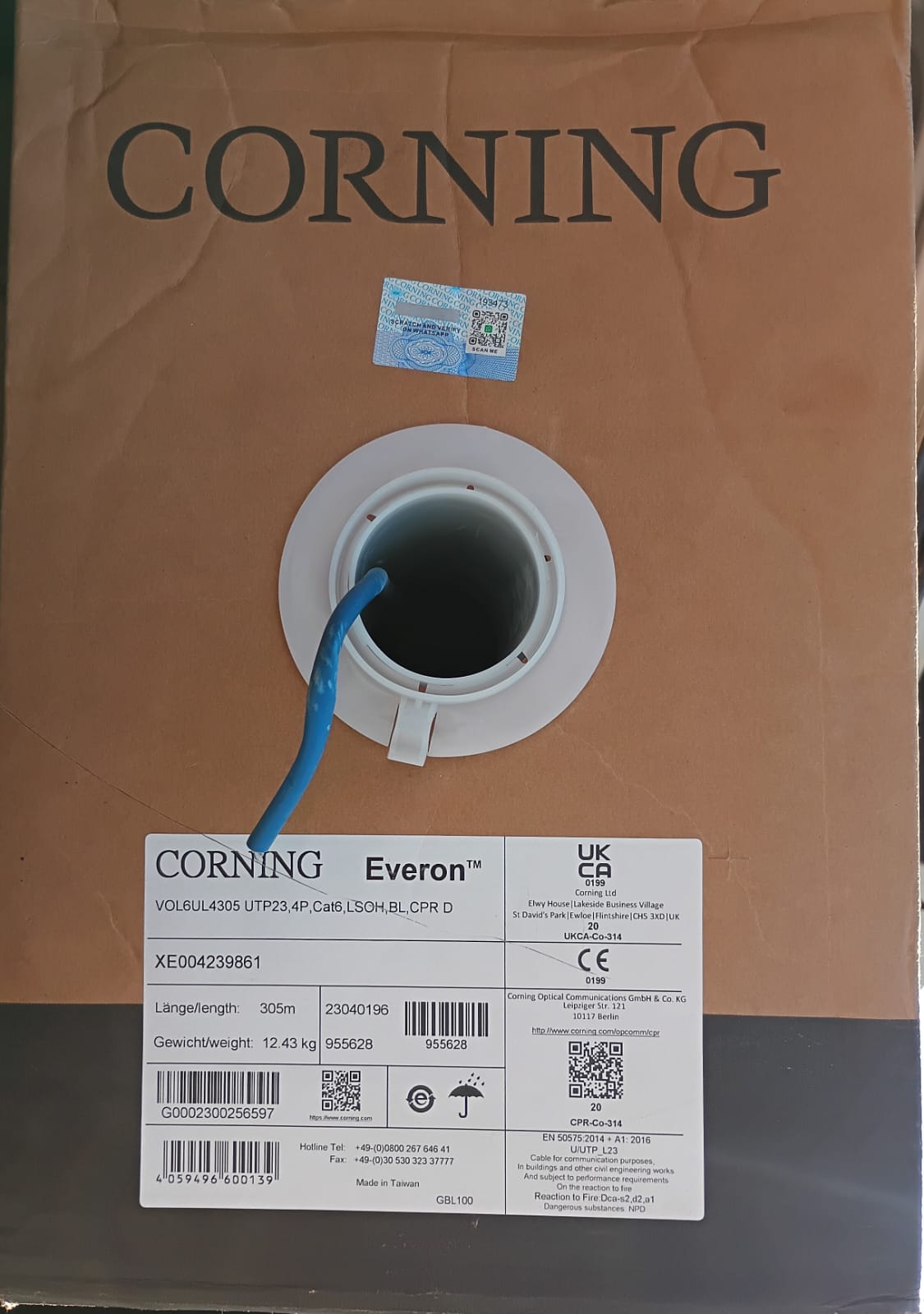

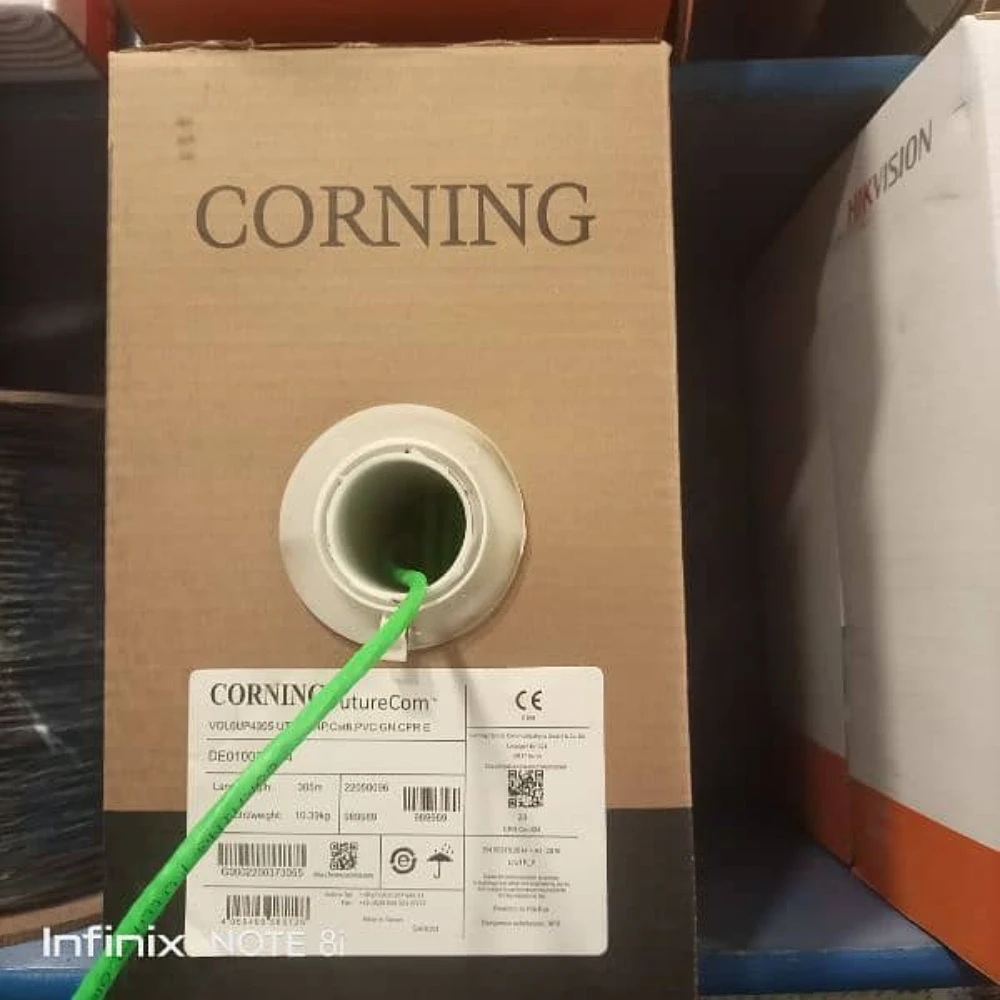

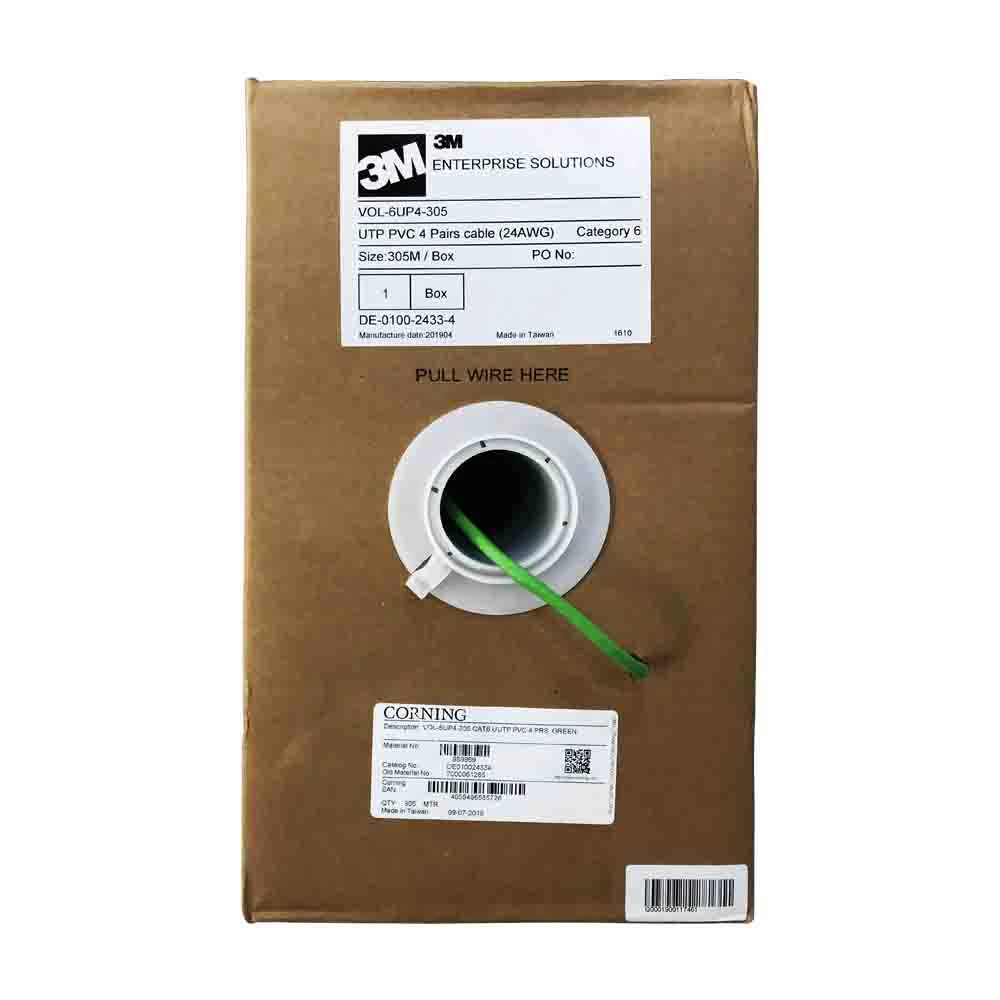

3M-Corning Cat6 UTP 23AWG Cable Roll, 305M

Availability:

Available on backorder


Compare

Belonging to the 3M™ Corning™ Network Solutions, this 350 MHz UTP Category 6 cable will deliver the best performance when used with the 3M TM  RJ45 K6 jacks, to give highest margins over Category 6 / TIA/EIA 568 and ISO 11801 and EN 50173 Class E standards.

Specifications
Ordering Information Ref.-No.
Rights reserved to make technical alternations. Dr.Nr.
07-404-64900/06.2003-pdf
Electrical characteristics at 20º C :
Conductor resistance at 20° C (max.) 98,6 Ω/km
Dielectric strength at 50 Hz 1 kV/1min
Insulation resistance (min.) 5000 MΩ/km
Velocity (nom.) 66%
Characteristic impedance 100 +/-15 Ω (1 to 100 MHz)
Mutual capacitance (nom) <55 pF/m.
Propagation delay skew <20 ns/100m
