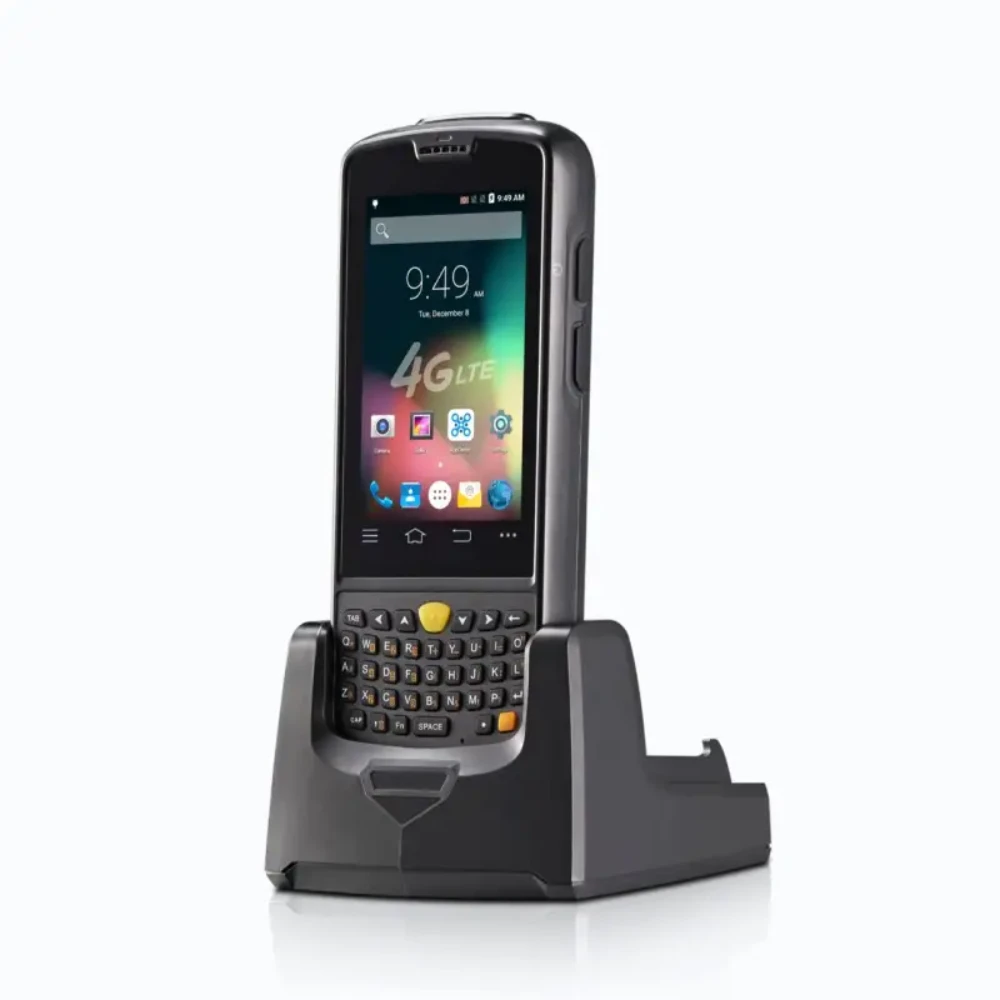

Black Copper BC-PDR-208 Description
Rugged and Portable with High Performance
Black Copper BC-PDR-208 is an Android-based rugged Handheld Computer. With its fast 4G connectivity and powerful Qualcomm processor as well as the comprehensive data capture options, including LF/HF RFID and NFC reading, high-performance 1D/2D, infra-red and sensitive fingerprint scanning, you can find this easy-to-deploy device an exceptionally valuable helper for your workers to increase their efficiency and productivity.
Features
| Android 5.1 OS | High Performance CPU |
| 4G LTE Network | Stable WIFI/Bluetooth |
| Powerful Battery |
Functions
| Industry-leading Scan Head | HF RFID/NFC |
| LF RFID | Fingerprint Authentication |
| InfraRed | Accurate GPS |
SPECIFICATIONS
| Physical Characteristics | |
| Dimensions | 176mm x 76mm x 29mm/ 6.93 x 2.99 x 1.14in |
| Weight | 319g/ 11.25oz |
| Display | 4’’ WVGA (480*800), 16.7M colors |
| Touch Panel | Rugged capacitive touch panel |
| Power | Main battery: Li-ion, 3200mAh
Pistol battery: Li-ion, 5200mAh (optional) |
| Expansion Slot | 1 PSAM(ISO7816 Protocol), 1 SIM, 1 MicroSD(TF) slot |
| Interfaces | USB Micro-B |
| Audio | 0.5W speaker, build-in microphone |
| Keypad | Numeric / Qwerty |
| Sensors | Light sensor, proximity sensor |
| User Environment | |
| Operating Temp. | -4°F to 122°F / -20°C to 50°C |
| Storage Temp. | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5%RH – 95%RH non condensing |
| Drop Specification | Multiple 1.2m/3.9ft drops to concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m/1.64ft falls at room temperature |
| Sealing | IP64 |
| ESD | ±15KV air discharge, ±8KV conductive discharge |
| Performance | |
| CPU（1） | Qualcomm 1.3 GHz quad-core |
| RAM+ROM（1） | 2GB+16GB |
| CPU（2） | Qualcomm 1 GHz quad-core |
| RAM+ROM（2） | 1GB+8GB |
| Expansion | Supports up to 32GB Micro SD card |
| Developing Environment | |
| Operating System | Android 5.1 |
| SDK | Black Copper Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n |
| WWAN (Europe) | 2G:GPRS(900/1800MHz)
3G:WCDMA B1、B8 4G:FDD-LTE:B1、B3、B7、B8、B20 |
| WWAN (America) | 2G: GPRS(850/1900MHz)
3G: WCDMA B1、B2、B5 4G: FDD- LTE: B2 B4 B7 B17 |
| WWAN (China) | 2G: GPRS(850/900/1800MHz)
3G:WCDMA: B1; CDMA EVDO:EVDO Rev.A800MHz;TD-SCDMA: B34, B39 4G: TDD-LTE: B38/B39/B40/B41;FDD-LTE: B1/B3 |
| Bluetooth | Bluetooth 4.0 |
| GPS | GPS, AGPS |
| Fingerprint | |
| Functions | Fingerprint enrollment, match, storage etc. |
| Sensor | TCS1 / TCS2SS (Capacitive) |
| Image Size (pixel) | TCS1: 12.8×18; TCS2SS: 10.4×14.4 |
| Sensing Area (mm) | TCS1: 256×360; TCS2SS: 208×288 |
| Resolution (dpi) | 508 |
| Standard | TCS1: FIPS, STQC; TCS2SS: ISO |
| Note | *This function is optional |
| PSAM | |
| Protocol | ISO7816 Protocol |
| Slots | 1 PSAM slot |
| Note | *This function is optional |
| InfraRed | |
| Wavelength | 940nm |
| Frequency | 38kHz |
| Range | > 4m |
| Protocol | DLT_645-2007 |
| Note | *This function is optional |
| Barcode Scanning | |
| 1D Linear Scanner | Honeywell N4313 / Zebra SE965 |
| 2D Imager Scanner | Zebra SE4500 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
| LF RFID | |
| Frequency | 125kHz, 134kHz (FDX-B / HDX) |
| Protocol | ISO11784/5, ISO18000-2 |
| Chips | R/O ID card, eg EM4100/4200, TK4100
R/W ID card, eg EM4305/HITAG S Animal tags Others for customization |
| Range | 3-8cm |
| Note | *This function is optional |
| Camera | |
| Camera | 8MP Autofocus with flash |
| Note | *This function is optional |
| NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc |
| Range | 2-4cm |
| Note | *This function is optional |
| LF RFID (with external antenna) | |
| Frequency | 134kHz (FDX-B+HDX) |
| Protocol | ISO11784/5 |
| Chips | Animal tags
Others for customization |
| Range | 3-12cm, external antenna
3-20cm, with a 75cm extension antenna |
| Note | *This function is optional |
| HF RFID | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693 |
| Chips | M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
CPU_A card,CPU_B card ICODE II,TI2048,LRI64K Others for customization |
| Range | 3-8cm |
| Note | *This function is optional |
