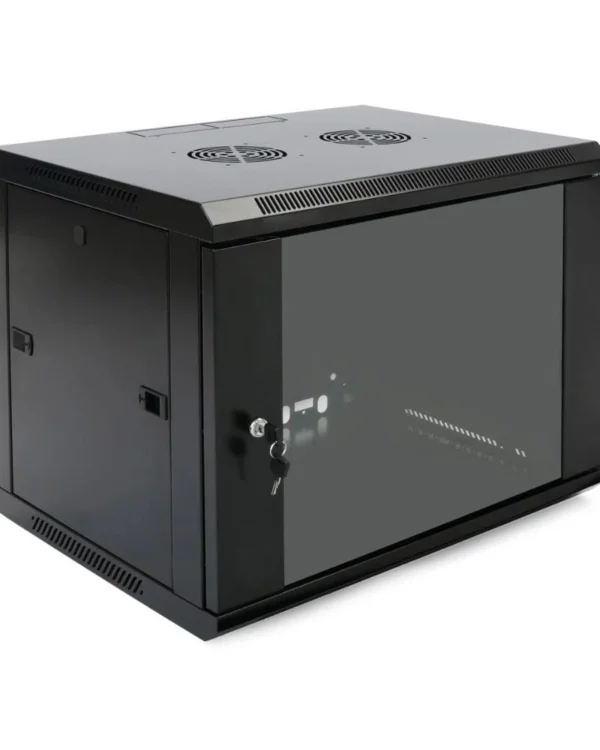

19 INCH 6U Server Rack (Networking Product)

”

Specifications

Complete structure and with 19 “front rack guides, adjustable in depth to adapt to any need, optionally the rear guides # WO042 can be installed.

Door with safety glass that gives it a more attractive design and locks with a key. Opening the door 180 degrees.

Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left    open or closed with a metal plate.

Drilling for up to two 12 cm fans on the top panel (fans not included).

Holes in the back plate for fixing the cabinet to the wall.

Bottom of the cabinet of 450 mm.

Side panels with the removable system without screws, for convenient lateral access to the wiring and the accessories, housed. Optionally, a lock can be installed on the side panels, to avoid unwanted access.

They are delivered to the customer fully assembled and packed, ready to be installed. Manufactured in SPCC steel, painted black.

They comply with the most stringent standards and standards ANSI / EIARS-310-D, IEC297-2, DIN41491 (part 1, Part 7), and DIN41494.”
