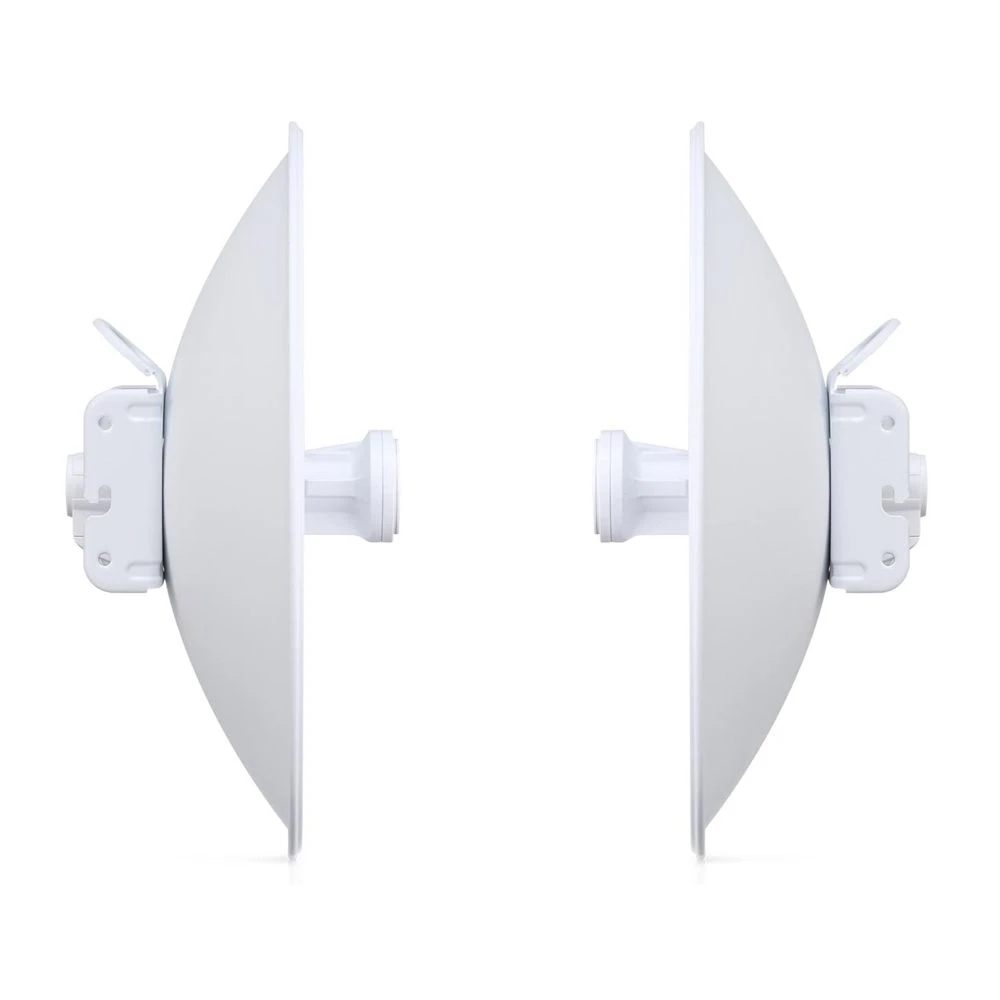

UBIQUITI PBE-5AC-GEN2


The Ubiquiti Networks airMAX PowerBeam Gen 2 is an ideal product for CPE deployments requiring maximum performance. Utilizing InnerFeed technology to integrate the radio into the feedhorn of the antenna, there is now a need for extra cables, improving performance thanks to no cable loss. It requires no tools for assembly, requiring only a single wrench for pole-mounting

Compare

UBIQUITI PBE-5AC-GEN2 DESCRIPTION

Model No PBE-5AC-GEN2
Frequency 5 GHz
Throughput 450 Mbps
Gain 25dBi
Management Radio Yes
Ports (1) 10/100/1000 Ethernet Port
Range 25 km
Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph)

Product Specifications

  • Dimensions: 420 x 420 x 230mm (16.54 x 16.54 x 9.06?)
  • Weight: 2.22kg (4.89lbs)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
  • Max. Power Consumption: 8.5W
  • Power Method: Passive PoE (Pairs 4,5 ;7,8 Return)
  • Supported Voltage Range: 20 to 26VDC
  • Gain: 25dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • Processor Specs: MIPS 74Kc
  • Memory: 64MB
  • LEDs: Power, Ethernet, (4) Signal Strength
  • Channel Sizes:
  • PtP Mode: 10/20/30/40/50/60/80MHz
  • PtMP Mode: 10/20/30/40MHz
  • Enclosure Characteristics:
  • Antenna Feed: Outdoor UV Stabilized Plastic
  • Dish Reflector: Powder-Coated SPCC
  • Mounting: Pole-Mounting Kit (included)
  • Wind Loading: 380N @ 200km/h (85.4lbf @ 125mph)
  • Wind Survivability: 200km/h (125mph)
  • ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • RoHS Compliance: Yes
  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
  • Vibration Test: IEC 68-2-6
  • Temperature Shock Test: IEC 68-2-14
  • UV Test: IEC 68-2-5 at 40°C (104°F), Equivalent: ETS 300 019-1-4
  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
  • Certifications: CE, FCC, IC

Operating Frequency:

  • 2412 – 2472MHz
  • USA U-NII-1: 5150 – 5250MHz
  • USA U-NII-2A: 5250 – 5350MHz
  • USA U-NII-2C: 5470 – 5725MHz
  • USA U-NII-3: 5725 – 5850MHz

Product Includes:

  • Dish Reflector
  • Antenna Feed
  • Rear Housing
  • Adjustment Bracket
  • Mounting Bracket
  • Hex Bolts with Washers
  • Pole Clamp
  • Long Carriage Bolts
  • Flange Nuts
  • Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • Power Cord
  • Quick Start Guide
