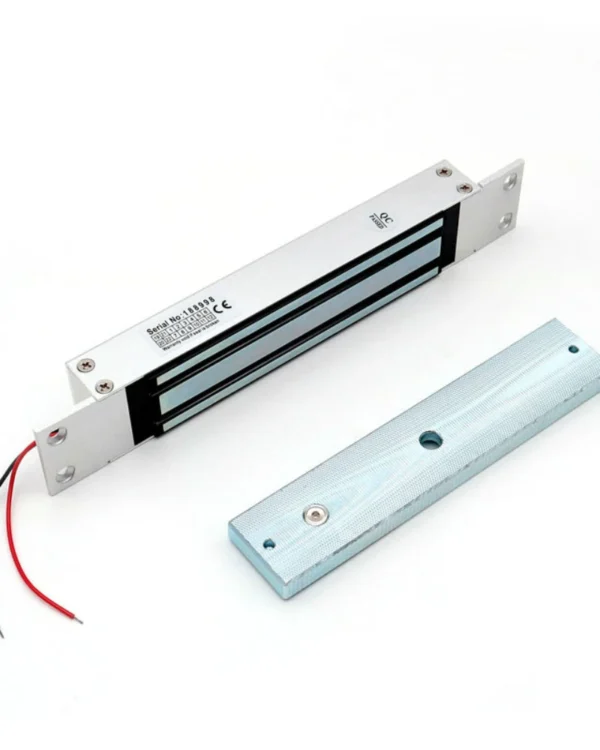

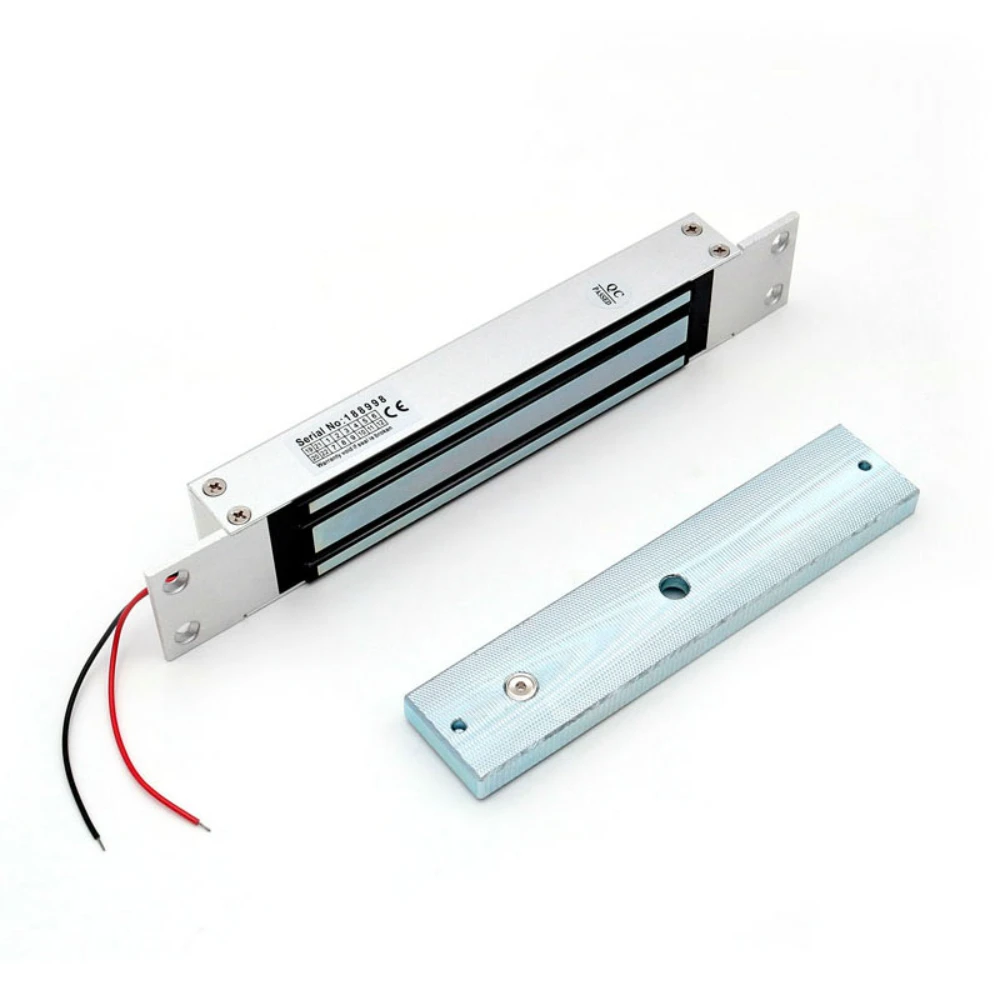

Electric Magnetic Door Lock electromagnet 280kg Holding Force

”

Key Specifications/Special Features:

• Lock size: 254 x 65.8 x 38.8mm
• Armature plate: 185 x 60 x 13mm
• Holding force: 500kg (1,200lbs)
• Voltage: 12/24V DC±10%
• Current draw: 12V/420mA, 24V/210mA
• Suitable for: wooden doors, glass doors, metal doors, and fireproof door
• Signal output: need to order YM-500M-S
• Surface temperature: ? 20°C
• Operating temperature: 10 to 55°C (14 to 131°F)
• Suitable humidity: 0 to 90% (non-condensing)
• Finishes for shell: anodized aluminum
• Finishes for magnetic: zinc
• Finishes for armature: zinc
• Weight: 4.5kg
• Standard packing: 4pcs
• Collinear load test: 500kg, 1,200lbs
• Dual voltage: 12 or 24V DC (optional)
• The standard voltage is 12V DC when finished
• MOV provides reverse current protection
• Anti-residual magnetism designed
• High-strength material, anodized aluminum housing
• Design with no mechanical bolt
• Increase the holding force, dual insulative hosing

“
